IBF - Kanalventilator

IBF

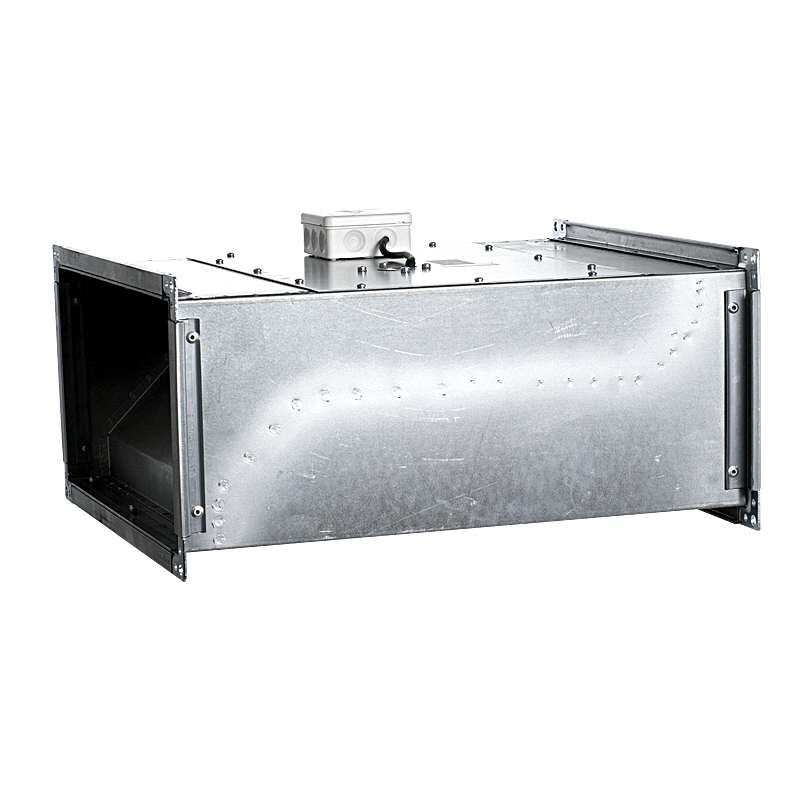

Kanalventilator

Kanalventilatoren zum Einbau in beliebige Positionen in rechteckigen Lüftungskanälen. Gehäuse aus verzinktem Stahlblech.
Fragen Sie nach einem Produkt

Application

IBF fans are used in a variety of mechanical ventilation systems, combining the benefits of axial fans - flow direction and radial - stable compressibility, low noise level, high efficiency. Examples of applications include supply and exhaust ventilation of flats, offices, shops, bars, cafes, restaurants.

Construction

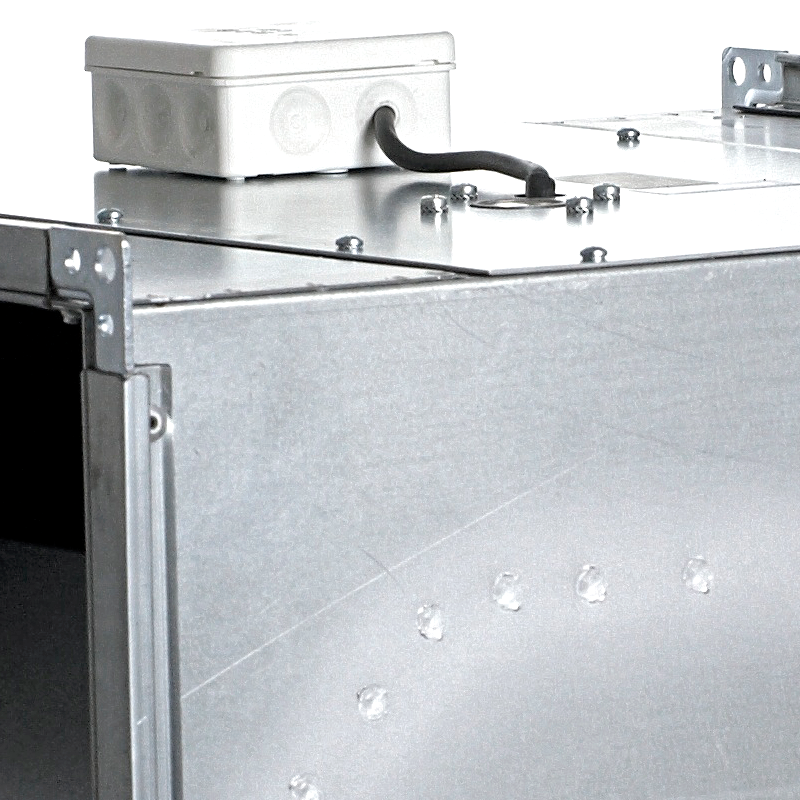

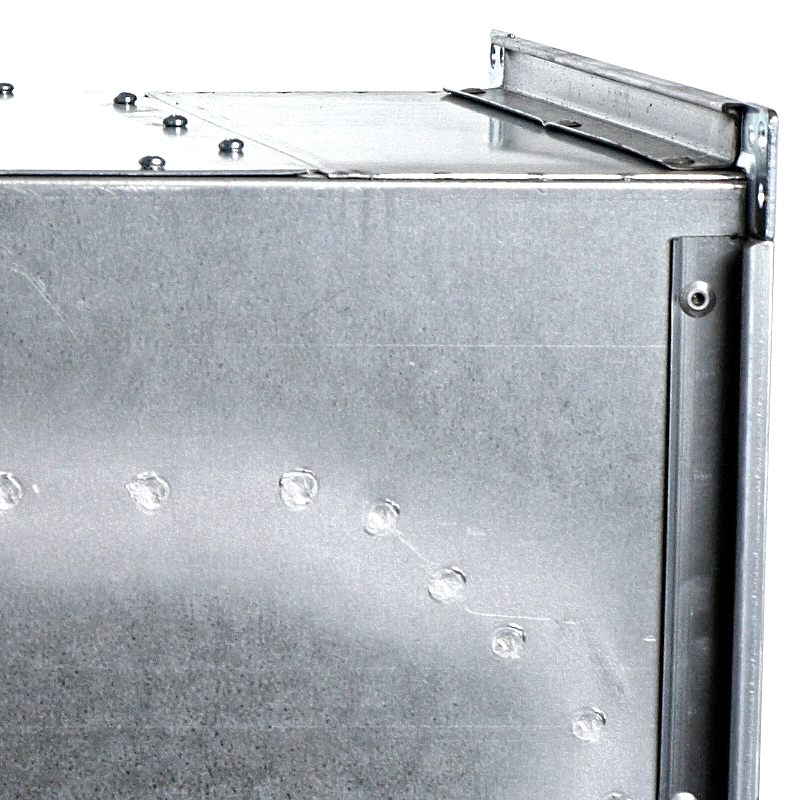

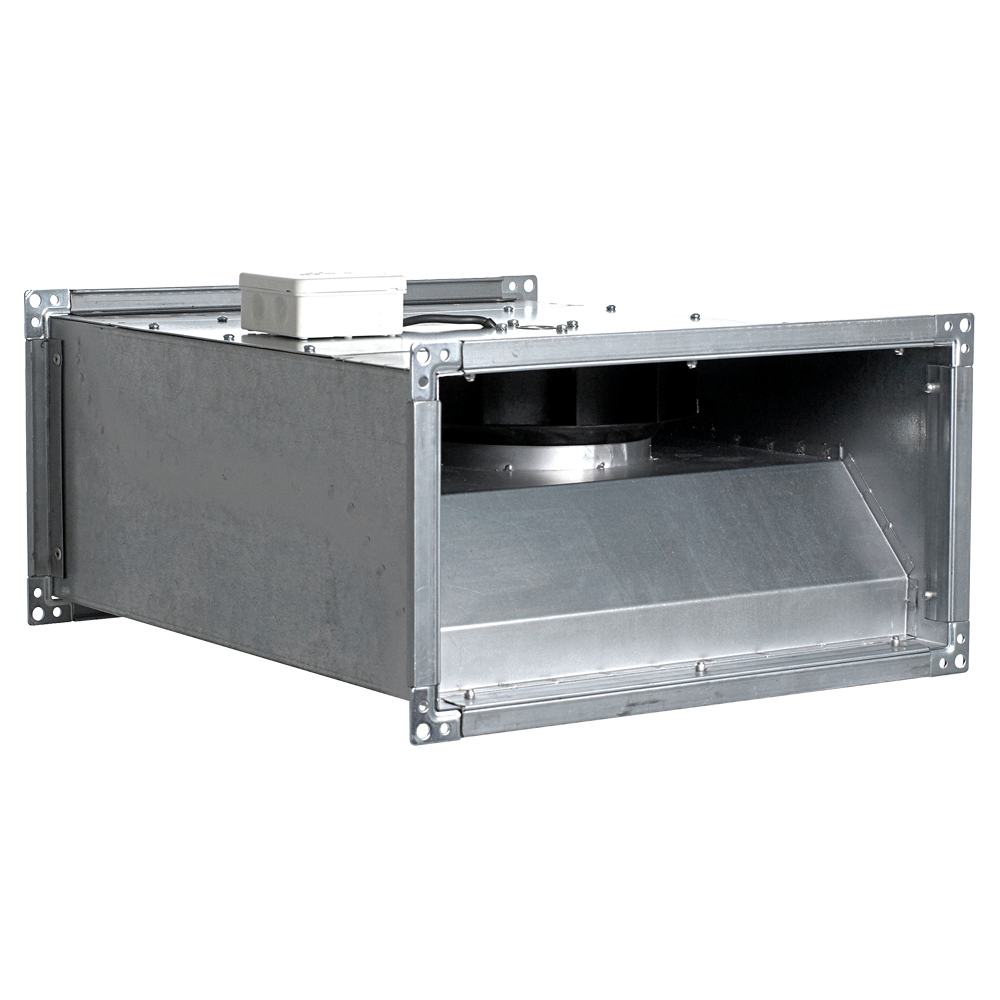

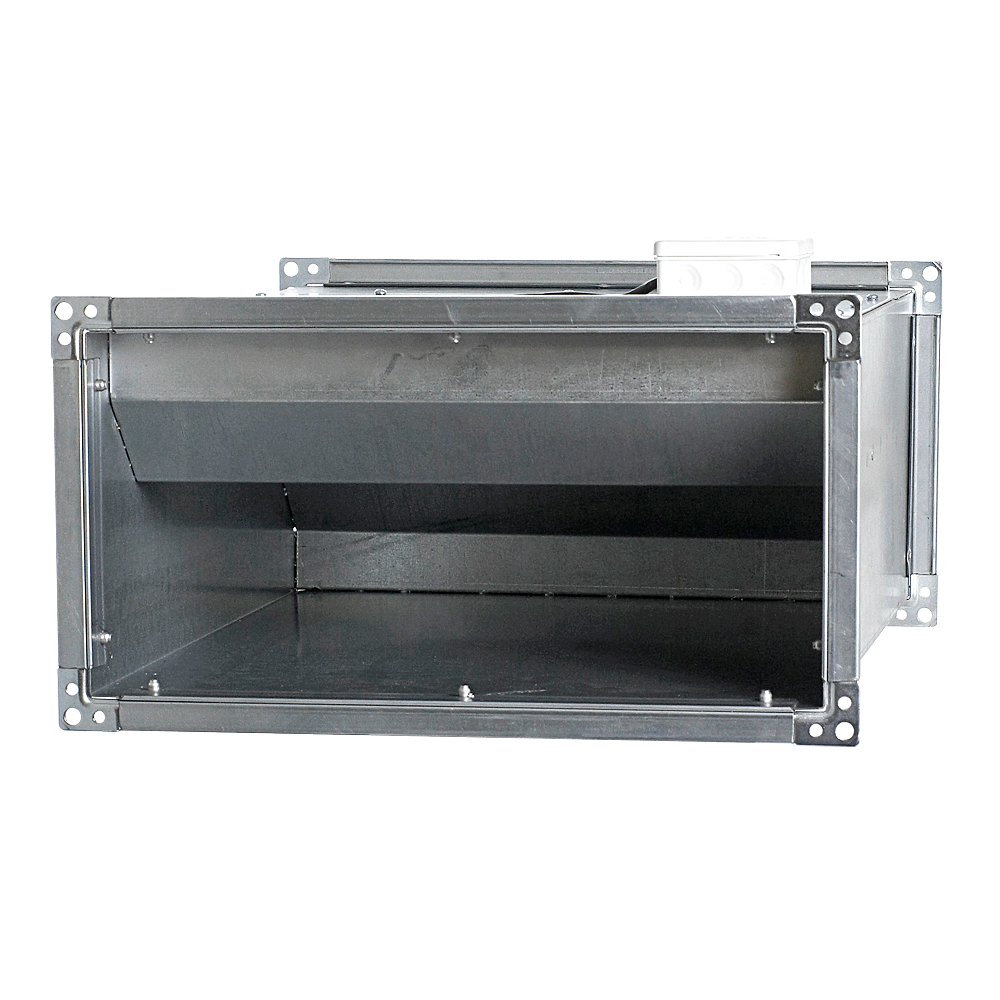

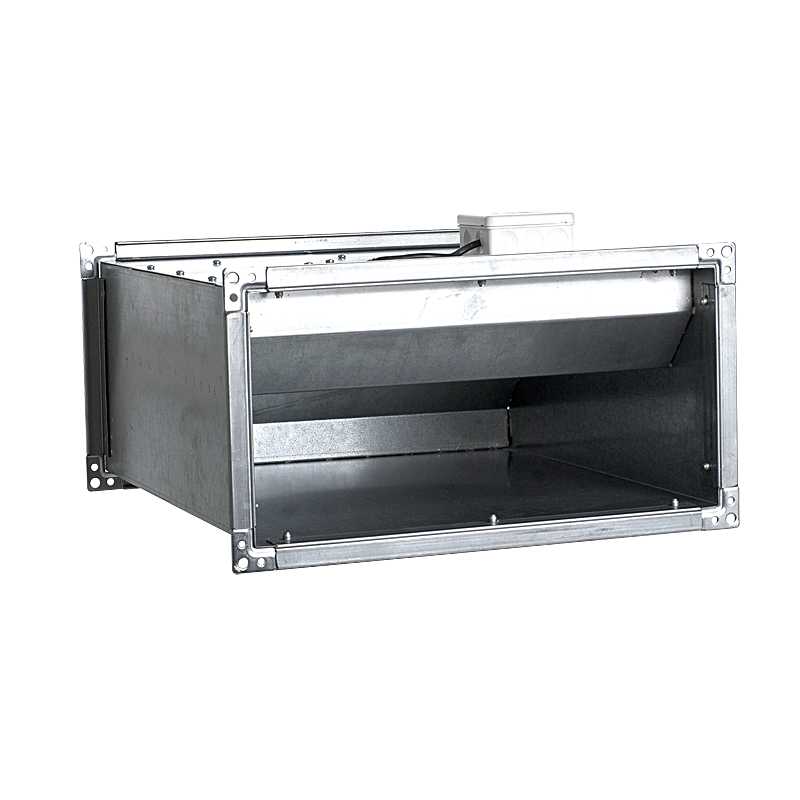

Duct fans designed for mounting in any position in rectangular ventilation ducts. Housing made of galvanized sheet steel. Fitted with mounting flanges on the inlet and outlet side. Flap for access to rotor and motor without dismantling the installation.

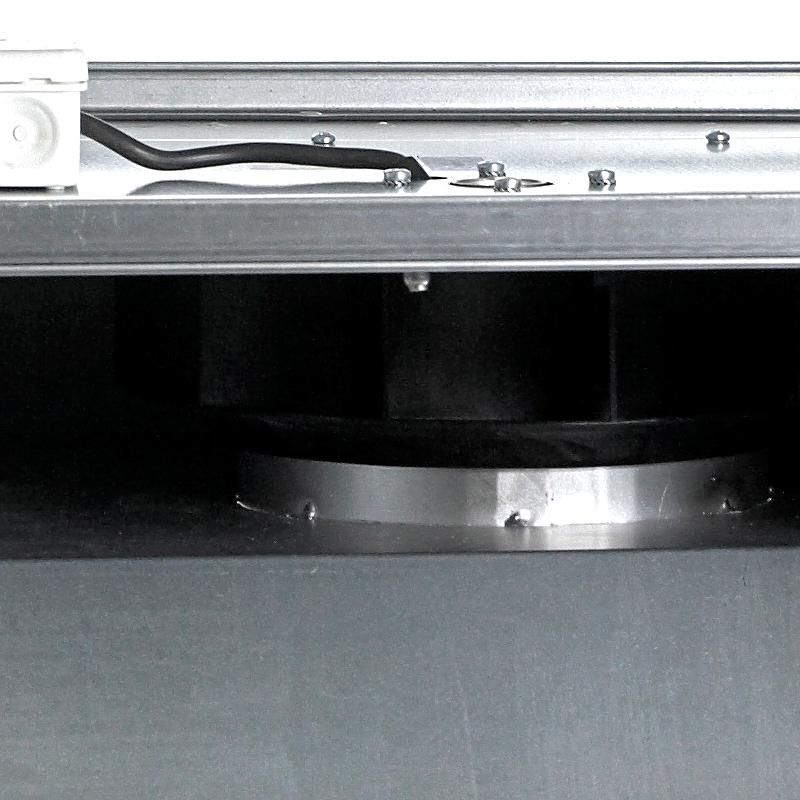

Rotors with sloping backward vanes are adapted to transport the maximum amount of air at high static pressure with minimal noise. Rotors, depending on the size of the device, are made of plastic or aluminium sheet (depending on the model). On request, fans can be made in any colour of the RAL palette.

Electric motor

Single-phase 230V, 50Hz or three-phase 400V, 50Hz induction motor with external rotor. Motors adapted for smooth rotation speed control.

The motor windings have thermal overload protection. Operating temperature -40oC to +70oC, depending on model.

Technischer Support

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Arbeitseigenschaften

Größe

Typ A B C D E F G ØH
  mm mm mm mm mm mm mm mm
IBF/2-190S 402 298 148 320 170 340 190 9
IBF/2-220S 502 398 198 420 220 440 240 9
IBF/2-280S 532 498 248 520 270 540 290 9
IBF/4-315S 565 500 298 522 320 540 338 9
IBF/4-315T 565 500 298 522 320 540 338 9
IBF/6-315S 565 500 298 522 320 540 338 9
IBF/4-355S 725 600 348 622 370 640 388 9
IBF/4-355T 725 600 348 622 370 640 388 9
IBF/6-355S 725 600 348 622 370 640 388 9
IBF/4-400S 725 600 348 622 370 640 388 9
IBF/4-400T 725 600 348 622 370 640 388 9
IBF/6-400T 725 600 348 622 370 640 388 9
IBF/4-450T 725 700 400 722 422 740 440 9
IBF/4-450S SN 725 700 400 722 422 740 440 9
IBF/6-450T 725 700 400 722 422 740 440 9
IBF/4-500S 880 800 500 822 522 840 540 9
IBF/4-500T 880 800 500 822 522 840 540 9
IBF/6-500T 880 800 500 822 522 840 540 9
IBF/4-560T 1000 1000 500 1024 524 1056 556 13
IBF/6-560S SN 1000 1000 500 1024 524 1056 556 13
IBF/6-560T SN 1000 1000 500 1024 524 1056 556 13
