SC - Seitenkanalverdichter

SC

Seitenkanalverdichter

Geräte zur Druckluftförderung, grafische Maschinen, Rohrpost, Druckluftheber, mehrstufige Filtriergeräte mit einem sehr hohen Staubabscheidungsgrad, Industriestaubsauger...
Die Möglichkeit, in einer anderen
als der Standardfarbe zu malen
Fragen Sie nach einem Produkt

APPLICATION

Side-channel blowers are used in pneumatic transport. Typical applications:

  • pneumatic transport,
  • graphic machines, pneumatic lifts, multi-stage filtration devices with a very high degree of dust separation,
  • industrial vacuum cleaners, pools, aeration in biological sewage treatment plants, electroplating plants, etc.,
  • for oil-free transport of non-aggressive and non-explosive gases.

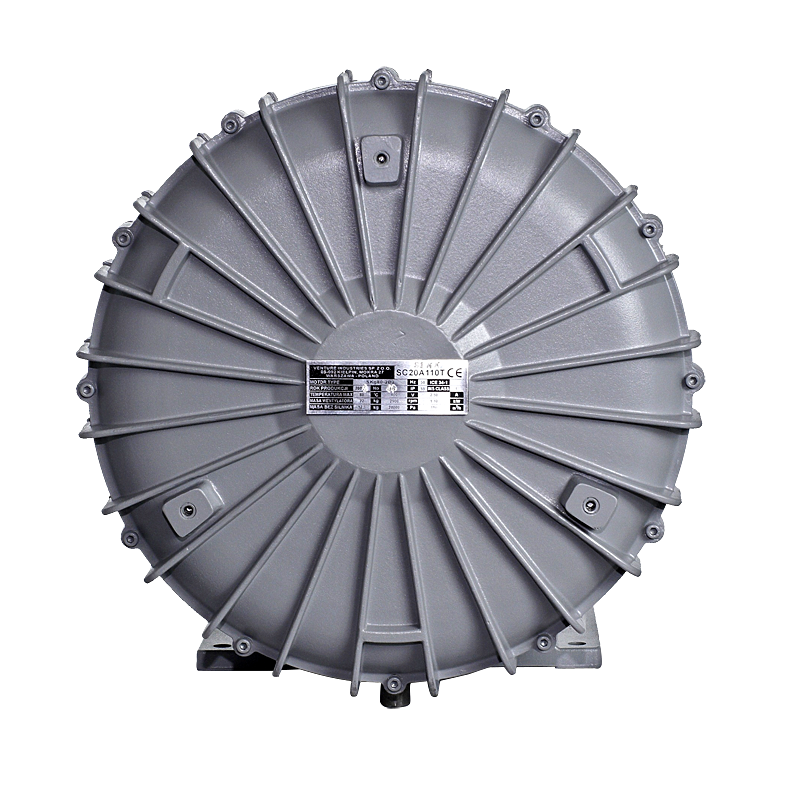

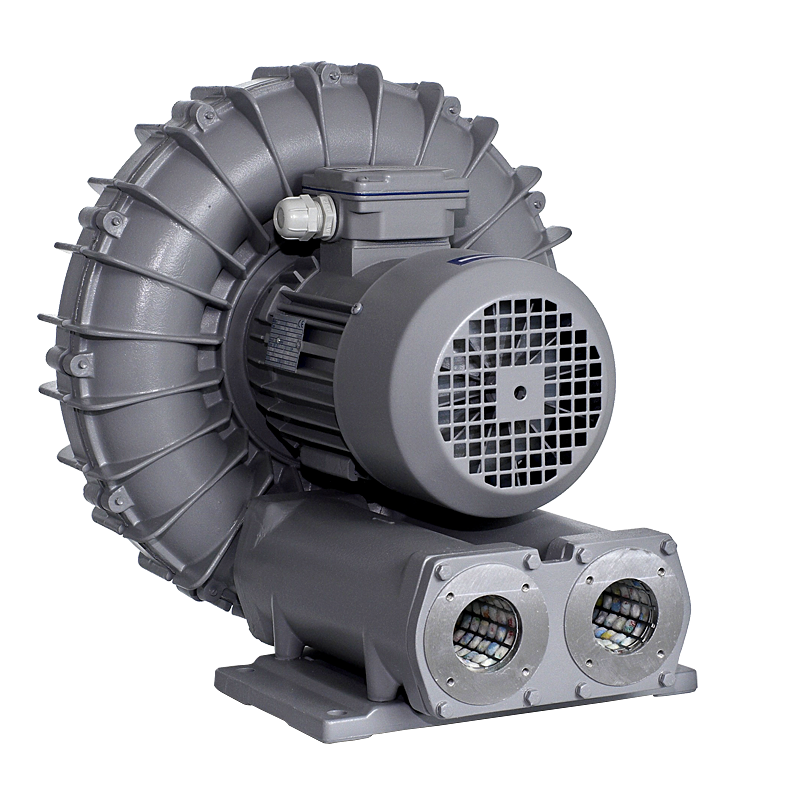

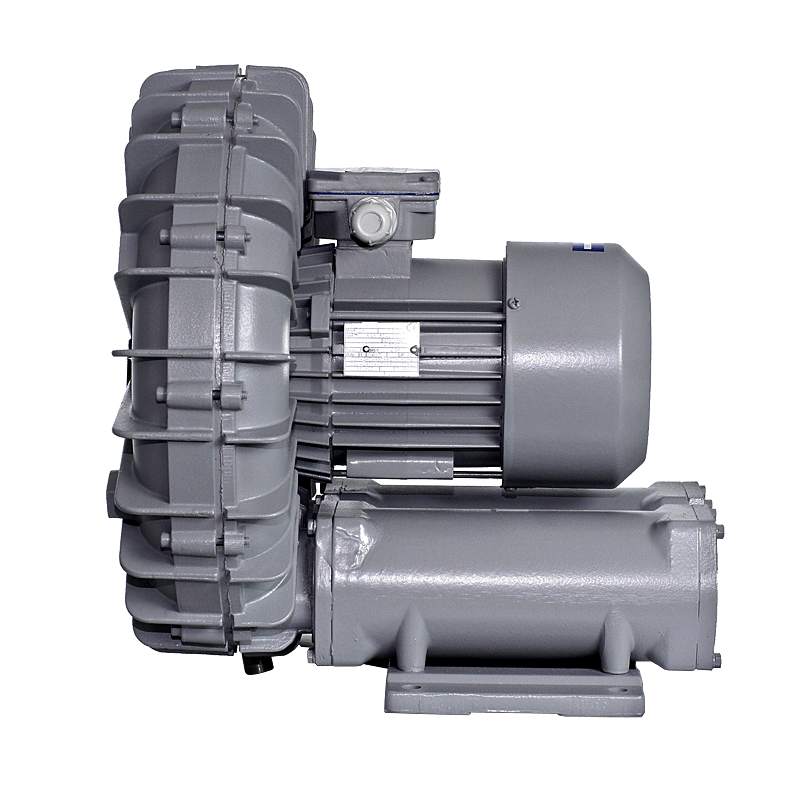

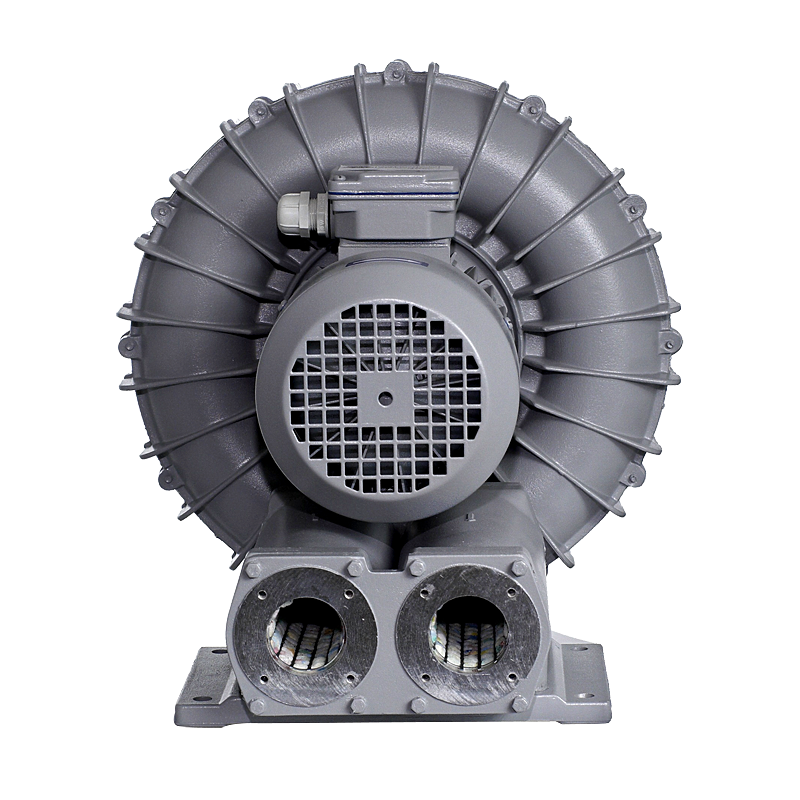

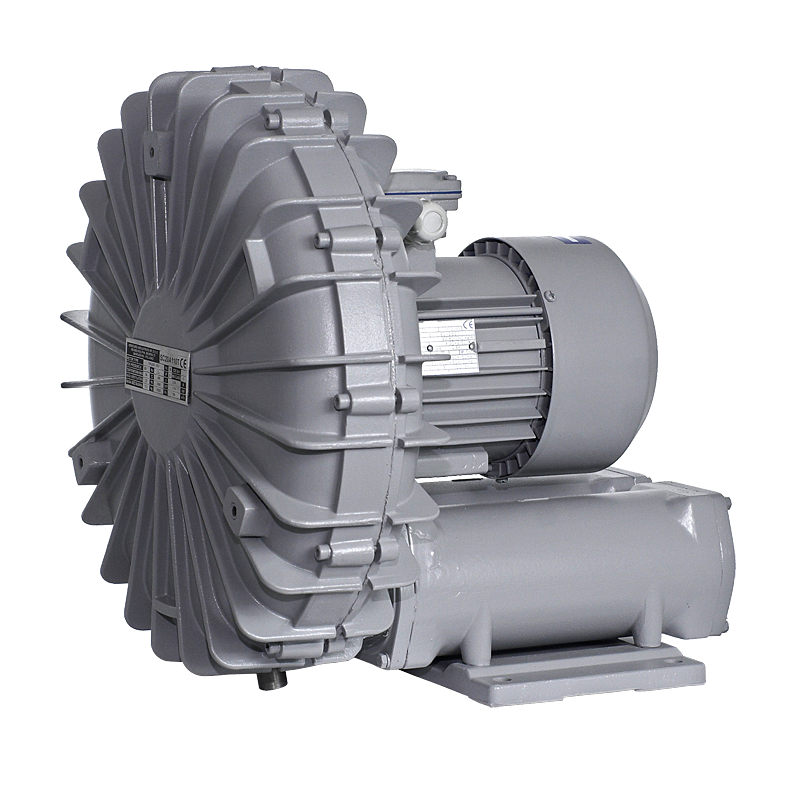

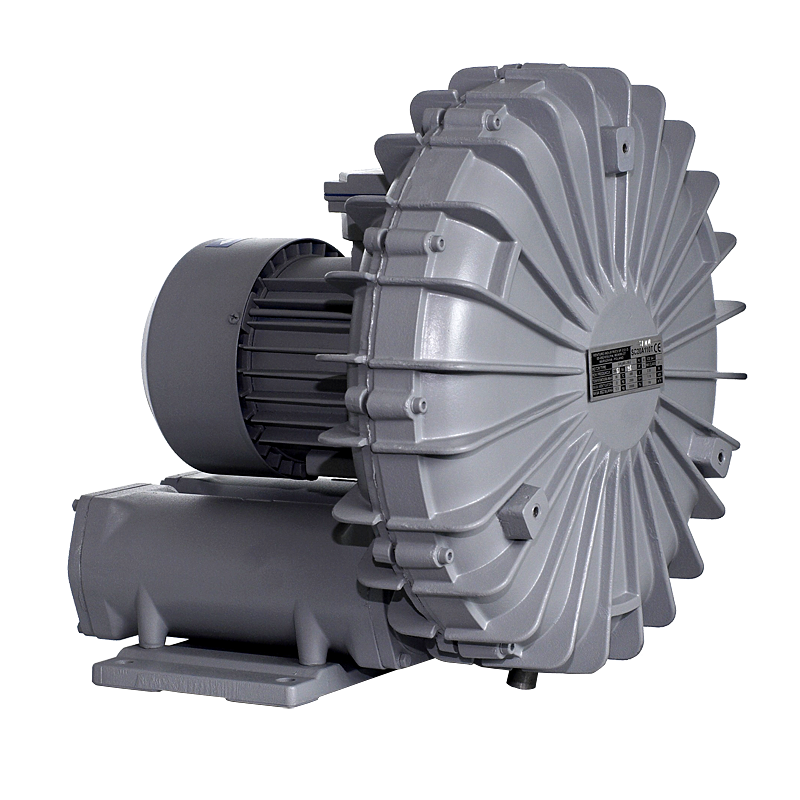

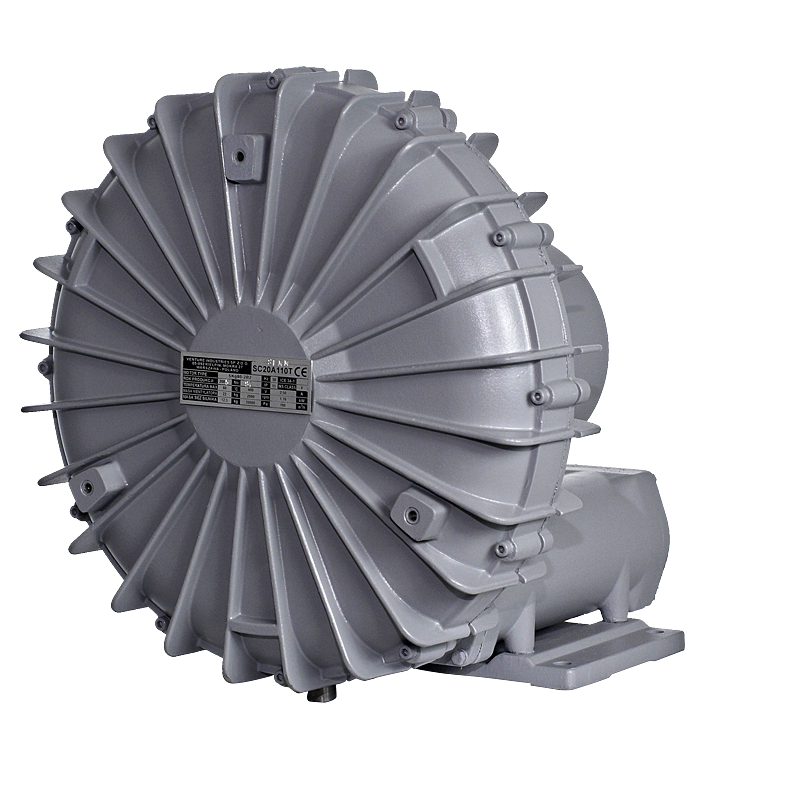

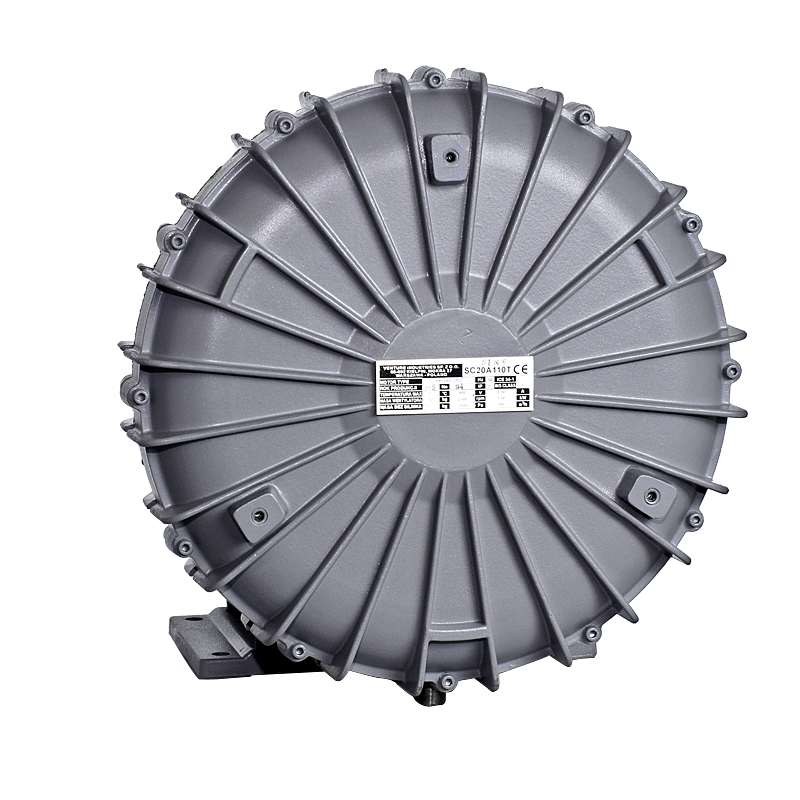

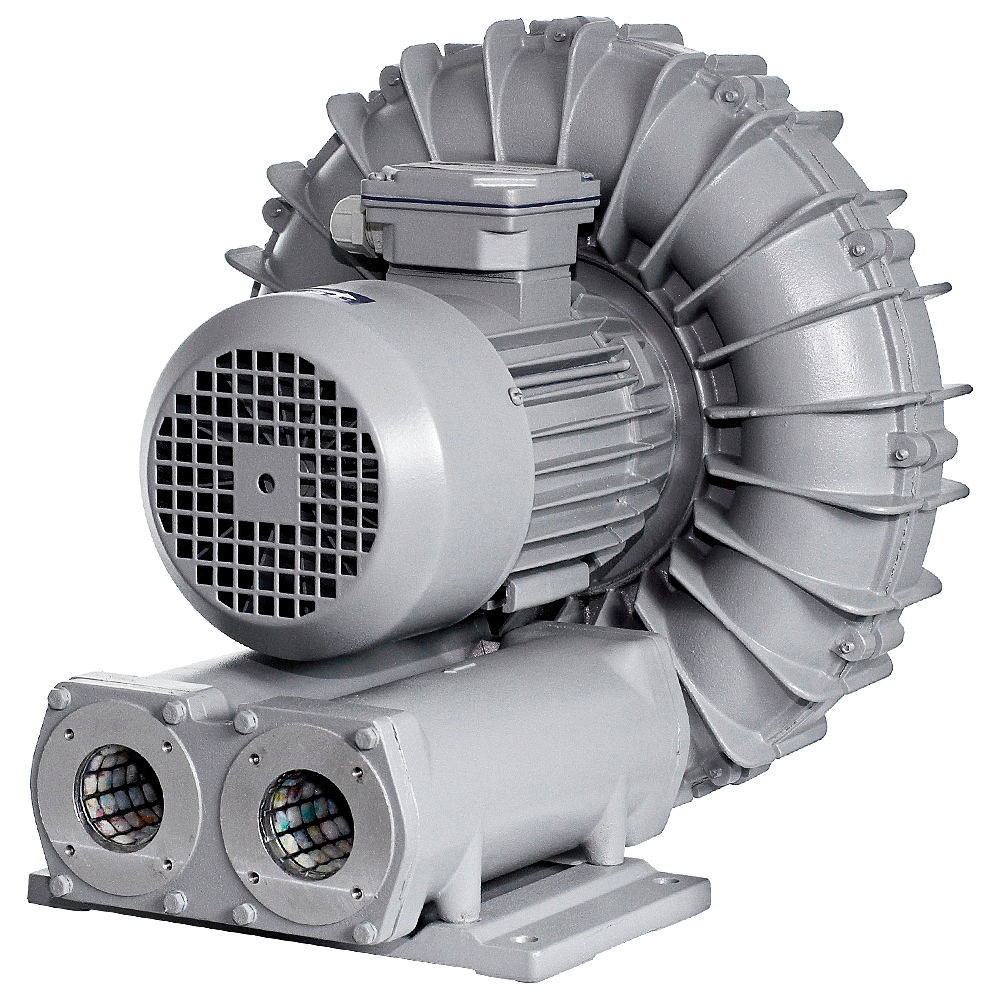

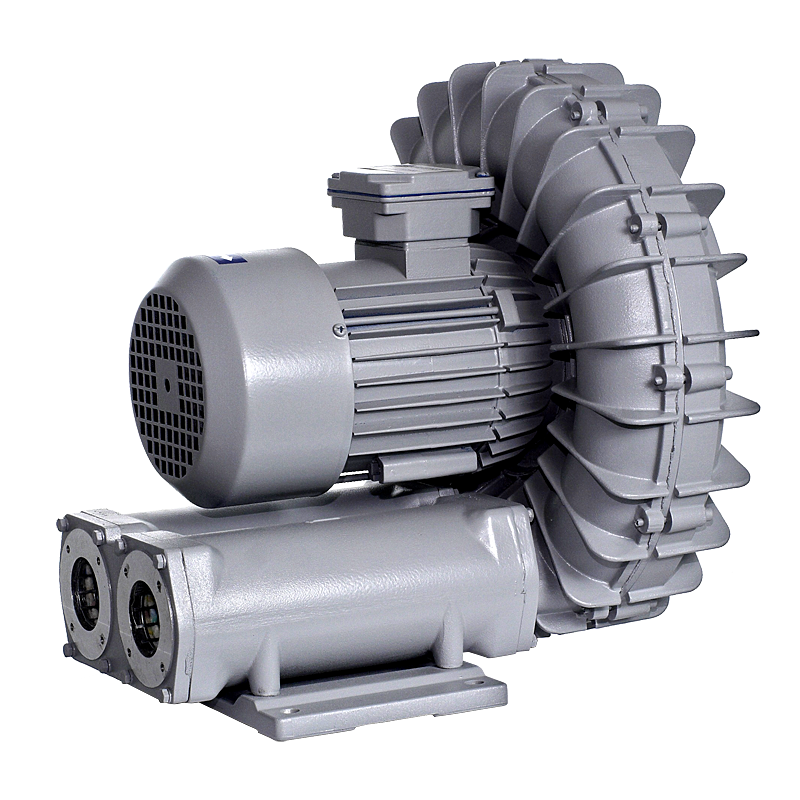

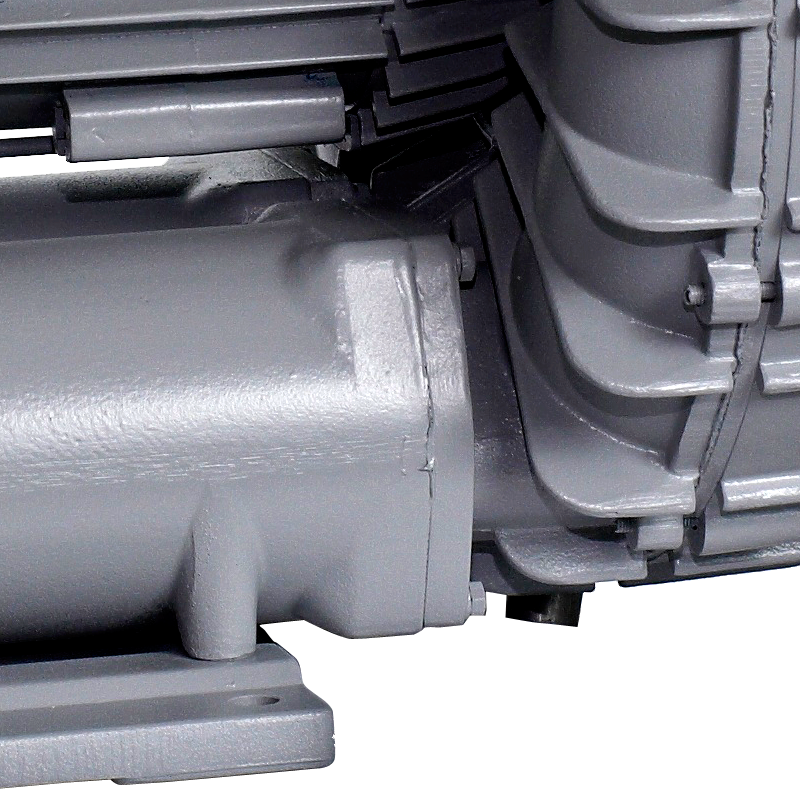

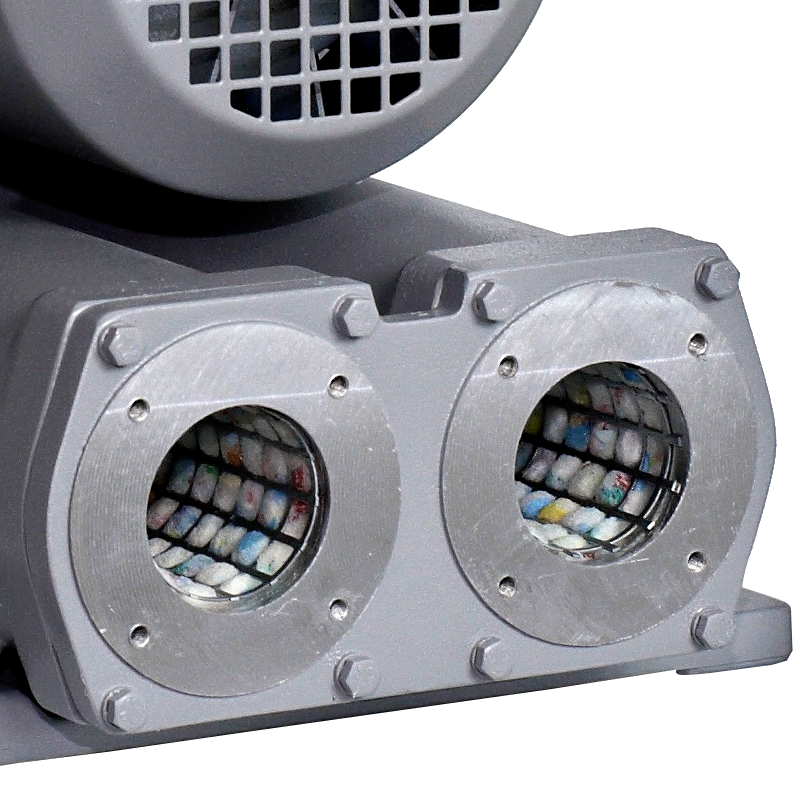

CONSTRUCTION

  • side-channel blower with direct drive,
  • the impeller is made of aluminum alloy, dynamically balanced according to ISO 1940-1,

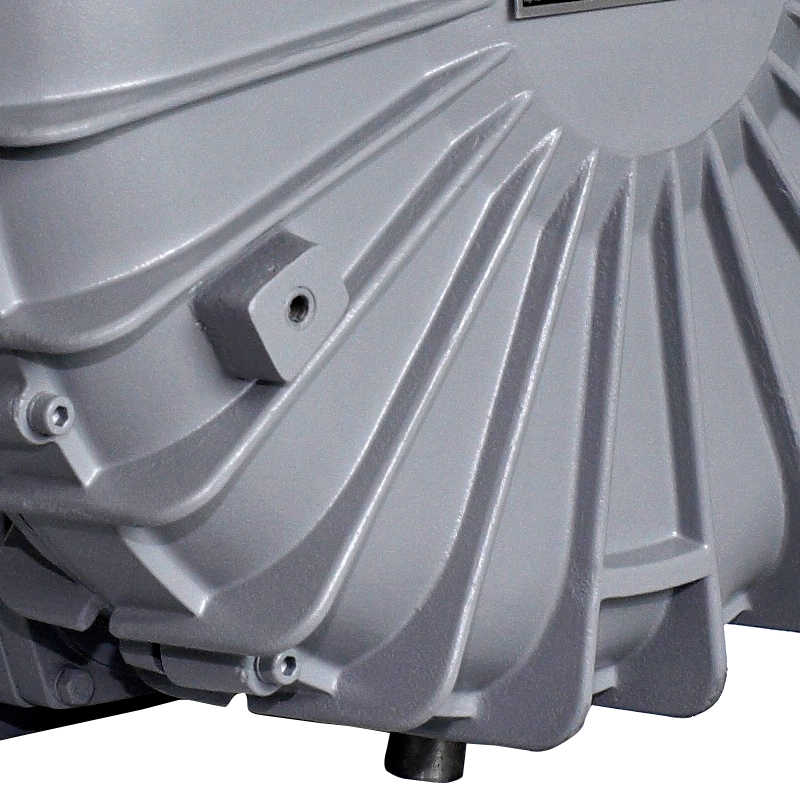

  • the housing is cast in aluminum alloy,
  • blower adapted to work in horizontal or vertical position,
  • standard color of the blower is gray RAL 7042,
  • maximum temperature of the transported medium is 60oC,
  • ambient temperature range from -20oC to +40oC.

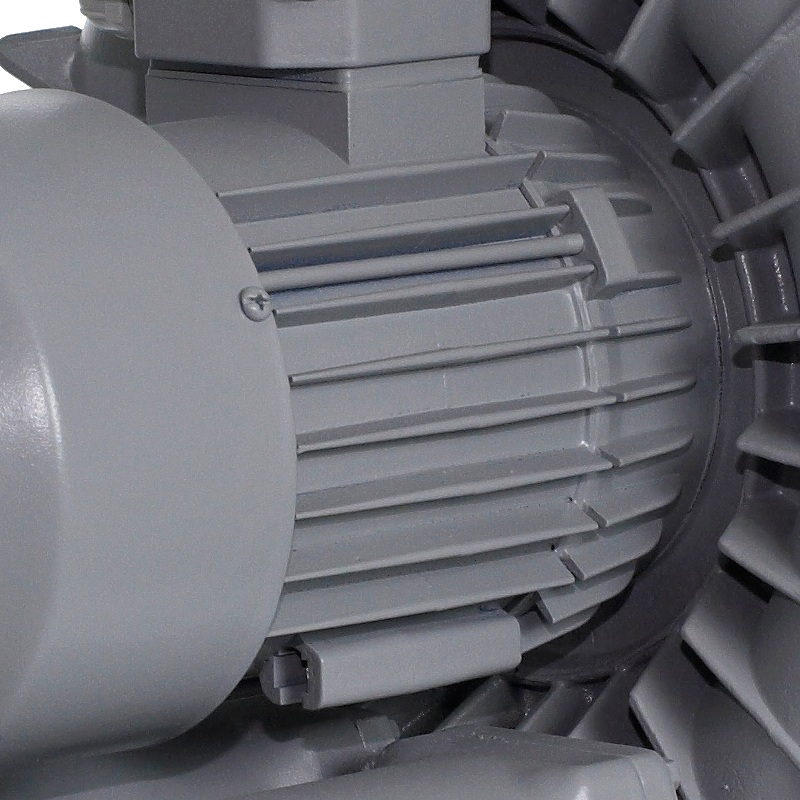

MOTOR

  • asynchronous single-phase 230V 50Hz (power to 2,2 kW),
  • asynchronous, three-phase 230V / 400V 50Hz (power to 3 kW),
  • asynchronous, three-phase 400V / 690V 50Hz (power from 4 kW),
  • efficiency class IE3 (from 0,75 kW) or IE2 (below 0,75 kW), degree of protection IP55,
  • insulation class F,
  • three-phase motors are adopted for frequency converter,
  • thermal protection (TP or TP and PTC) - in selected motors.

SPECIAL EXECUTIONS

  • motor with voltage and frequency of power different than standard,
  • single-phase motor adopted to voltage regulation,
  • motor with other than standard degree of protection,
  • motor equipped with sensors or additional cooling,
  • sealing between the housing and the motor,
  • maximum temperature of the transported medium above 60oC,
  • ambient temperature range below -20oC and above +40oC,
  • belt drive.

Technischer Support

m3/h
Pa

Größe

Typ A B C D E F G H I J
  mm mm mm mm mm mm mm mm mm mm
SC10A 037T vac 296 170 45 80 68 90 220 250 12 340
SC10A 037T pres 296 170 45 80 68 90 220 250 12 340
SC10A 055T vac 296 170 45 80 68 90 220 250 12 340
SC10A 055T pres 296 170 45 80 68 90 220 250 12 340
SC10C 075T vac 296 170 45 80 68 90 220 250 12 340
SC10C 075T pres 296 170 45 80 68 90 220 250 12 340
SC20A 110T vac 360 200 45 80 68 90 220 250 12 370
SC20A 110T pres 360 200 45 80 68 90 220 250 12 370
SC20A 150T pres 360 200 45 80 68 90 220 250 12 370
SC20A 150T vac 360 200 45 80 68 90 220 250 12 370
SC20C 110T vac 360 200 45 80 68 90 220 250 12 370
SC20C 110T pres 360 200 45 80 68 90 220 250 12 370
SC20C 150T vac 360 200 45 80 68 90 220 250 12 370
SC20C 150T pres 360 200 45 80 68 90 220 250 12 370
SC30A 220T vac 395 225 55 100 85 125 310 350 12 425
SC30A 220T pres 395 225 55 100 85 125 310 350 12 425
SC30A 300T pres 395 225 55 100 85 125 310 350 12 425
SC30C 220T vac 395 225 55 100 85 125 310 350 12 425
SC30C 220T pres 395 225 55 100 85 125 310 350 12 425
SC30C 300T vac 395 225 55 100 85 125 310 350 12 425
SC30C 300T pres 395 225 55 100 85 125 310 350 12 425
SC40A 400T vac 480 275 75 130 110 145 365 420 12 535
SC40A 400T pres 480 275 75 130 110 145 365 420 12 535
SC40A 550T vac 480 275 75 130 110 145 365 420 12 535
SC40A 550T pres 480 275 75 130 110 145 365 420 12 535
SC40A 750T pres 480 275 75 130 110 145 365 420 12 535
SC40C 550T vac 480 275 75 130 110 145 365 420 12 535
SC40C 550T pres 480 275 75 130 110 145 365 420 12 535
SC40C 750T vac 480 275 75 130 110 145 365 420 12 535
SC40C 750T pres 480 275 75 130 110 145 365 420 12 535
SC46A 750T vac 540 303 100 150 130 160 400 450 20 660
SC46A 750T pres 540 303 100 150 130 160 400 450 20 660
SC46A 1100T vac 540 303 100 150 130 160 400 450 20 660
SC46A 1100T pres 540 303 100 150 130 160 400 450 20 660
SC46C 750T vac 540 303 100 150 130 160 400 450 20 660
SC46C 750T pres 540 303 100 150 130 160 400 450 20 660
SC46C 1100T vac 540 303 100 150 130 160 400 450 20 660
SC46C 1100T pres 540 303 100 150 130 160 400 450 20 660
SC50A 750T vac 580 336 100 150 130 160 400 450 25 685
SC50A 750T pres 580 336 100 150 130 160 400 450 25 685
SC50A 1100T vac 580 336 100 150 130 160 400 450 25 685
SC50A 1100T pres 580 336 100 150 130 160 400 450 25 685
SC50A 1500T vac 580 336 100 150 130 160 400 450 25 685
SC50A 1500T pres 580 336 100 150 130 160 400 450 25 685
SC50C 750T vac 580 336 100 150 130 160 400 450 25 685
SC50C 750T pres 580 336 100 150 130 160 400 450 25 685
SC50C 1100T vac 580 336 100 150 130 160 400 450 25 685
SC50C 1100T pres 580 336 100 150 130 160 400 450 25 685
SC50C 1500T vac 580 336 100 150 130 160 400 450 25 685
SC50C 1500T pres 580 336 100 150 130 160 400 450 25 685
SC10A 037S vac 296 170 45 80 68 90 220 250 12 340
SC10A 037S pres 296 170 45 80 68 90 220 250 12 340
SC10A 055S vac 296 170 45 80 68 90 220 250 12 340
SC10A 055S pres 296 170 45 80 68 90 220 250 12 340
SC10C 075S vac 296 170 45 80 68 90 220 250 12 340
SC10C 075S pres 296 170 45 80 68 90 220 250 12 340
SC20A 110S vac 360 200 45 80 68 90 220 250 12 370
SC20A 110S pres 360 200 45 80 68 90 220 250 12 370
SC20A 150S pres 360 200 45 80 68 90 220 250 12 370
SC20C 110S vac 360 200 45 80 68 90 220 250 12 370
SC20C 110S pres 360 200 45 80 68 90 220 250 12 370
SC20C 150S vac 360 200 45 80 68 90 220 250 12 370
SC20C 150S pres 360 200 45 80 68 90 220 250 12 370
SC30A 220S vac 395 225 55 100 85 125 310 350 12 425
SC30A 220S pres 395 225 55 100 85 125 310 350 12 425
Typ K L M N P R S T W V
  mm mm mm mm mm mm mm mm mm mm
SC10A 037T vac 311 120 150 66 60 141 15 11 5 117
SC10A 037T pres 311 120 150 66 60 141 15 11 5 117
SC10A 055T vac 311 120 150 66 60 141 15 11 5 117
SC10A 055T pres 311 120 150 66 60 141 15 11 5 117
SC10C 075T vac 311 120 150 66 60 141 15 11 5 117
SC10C 075T pres 311 120 150 66 60 141 15 11 5 117
SC20A 110T vac 390 120 150 66 60 157 15 11 5 129.5
SC20A 110T pres 390 120 150 66 60 157 15 11 5 129.5
SC20A 150T pres 390 120 150 66 60 157 15 11 5 129.5
SC20A 150T vac 390 120 150 66 60 157 15 11 5 129.5
SC20C 110T vac 390 120 150 66 60 157 15 11 5 129.5
SC20C 110T pres 390 120 150 66 60 157 15 11 5 129.5
SC20C 150T vac 390 120 150 66 60 157 15 11 5 129.5
SC20C 150T pres 390 120 150 66 60 157 15 11 5 129.5
SC30A 220T vac 410 160 200 72 80 175 20 13 6 140
SC30A 220T pres 410 160 200 72 80 175 20 13 6 140
SC30A 300T pres 410 160 200 72 80 175 20 13 6 140
SC30C 220T vac 410 160 200 72 80 175 20 13 6 140
SC30C 220T pres 410 160 200 72 80 175 20 13 6 140
SC30C 300T vac 410 160 200 72 80 175 20 13 6 140
SC30C 300T pres 410 160 200 72 80 175 20 13 6 140
SC40A 400T vac 520 260 300 34 80 230 30 14 8 172
SC40A 400T pres 520 260 300 34 80 230 30 14 8 172
SC40A 550T vac 520 260 300 34 80 230 30 14 8 172
SC40A 550T pres 520 260 300 34 80 230 30 14 8 172
SC40A 750T pres 520 260 300 34 80 230 30 14 8 172
SC40C 550T vac 520 260 300 34 80 230 30 14 8 172
SC40C 550T pres 520 260 300 34 80 230 30 14 8 172
SC40C 750T vac 520 260 300 34 80 230 30 14 8 172
SC40C 750T pres 520 260 300 34 80 230 30 14 8 172
SC46A 750T vac 600 370 430 50 30 20 8
SC46A 750T pres 600 370 430 50 30 20 8
SC46A 1100T vac 600 370 430 50 30 20 8
SC46A 1100T pres 600 370 430 50 30 20 8
SC46C 750T vac 600 370 430 50 30 20 8
SC46C 750T pres 600 370 430 50 30 20 8
SC46C 1100T vac 600 370 430 50 30 20 8
SC46C 1100T pres 600 370 430 50 30 20 8
SC50A 750T vac 650 370 430 50 95 258 30 20 8 202
SC50A 750T pres 650 370 430 50 95 258 30 20 8 202
SC50A 1100T vac 650 370 430 50 95 258 30 20 8 202
SC50A 1100T pres 650 370 430 50 95 258 30 20 8 202
SC50A 1500T vac 650 370 430 50 95 258 30 20 8 202
SC50A 1500T pres 650 370 430 50 95 258 30 20 8 202
SC50C 750T vac 650 370 430 50 95 258 30 20 8 202
SC50C 750T pres 650 370 430 50 95 258 30 20 8 202
SC50C 1100T vac 650 370 430 50 95 258 30 20 8 202
SC50C 1100T pres 650 370 430 50 95 258 30 20 8 202
SC50C 1500T vac 650 370 430 50 95 258 30 20 8 202
SC50C 1500T pres 650 370 430 50 95 258 30 20 8 202
SC10A 037S vac 311 120 150 66 60 141 15 11 5 117
SC10A 037S pres 311 120 150 66 60 141 15 11 5 117
SC10A 055S vac 311 120 150 66 60 141 15 11 5 117
SC10A 055S pres 311 120 150 66 60 141 15 11 5 117
SC10C 075S vac 311 120 150 66 60 141 15 11 5 117
SC10C 075S pres 311 120 150 66 60 141 15 11 5 117
SC20A 110S vac 390 120 150 66 60 157 15 11 5 129.5
SC20A 110S pres 390 120 150 66 60 157 15 11 5 129.5
SC20A 150S pres 390 120 150 66 60 157 15 11 5 129.5
SC20C 110S vac 390 120 150 66 60 157 15 11 5 129.5
SC20C 110S pres 390 120 150 66 60 157 15 11 5 129.5
SC20C 150S vac 390 120 150 66 60 157 15 11 5 129.5
SC20C 150S pres 390 120 150 66 60 157 15 11 5 129.5
SC30A 220S vac 410 160 200 72 80 175 20 13 6 140
SC30A 220S pres 410 160 200 72 80 175 20 13 6 140
