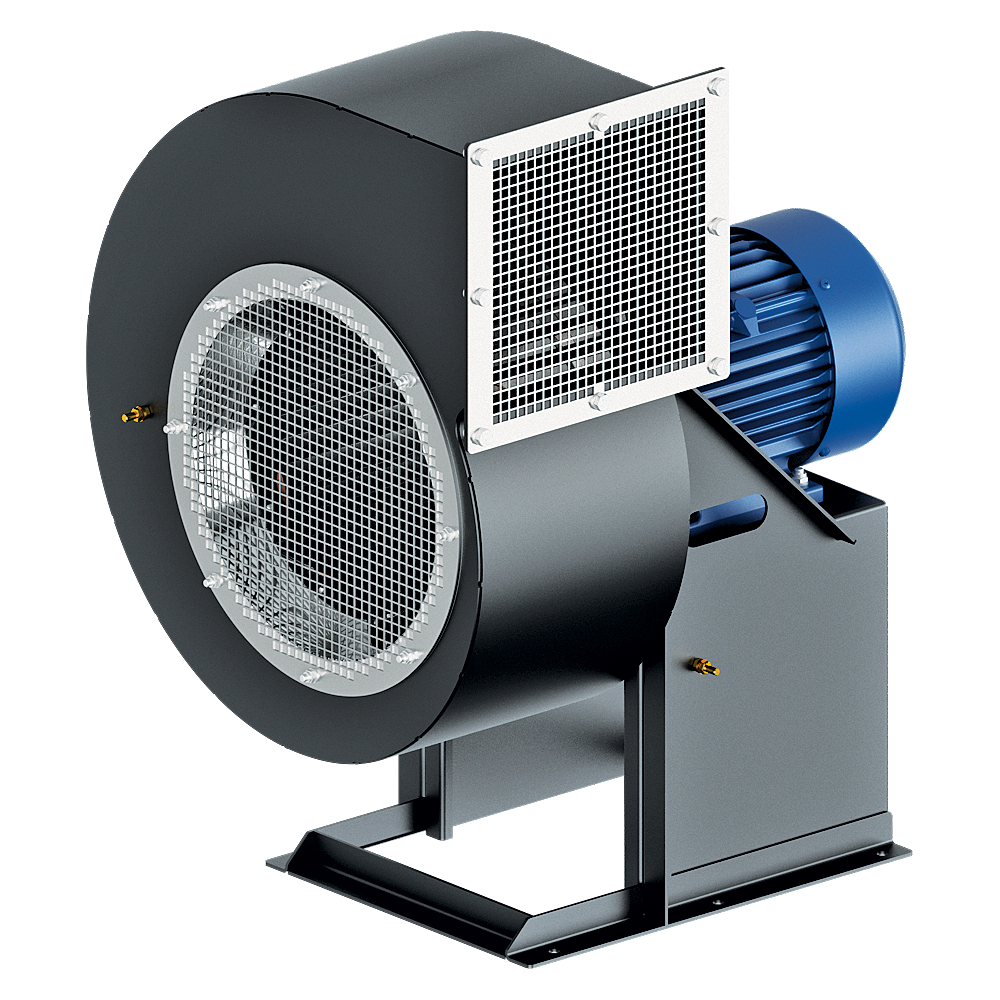

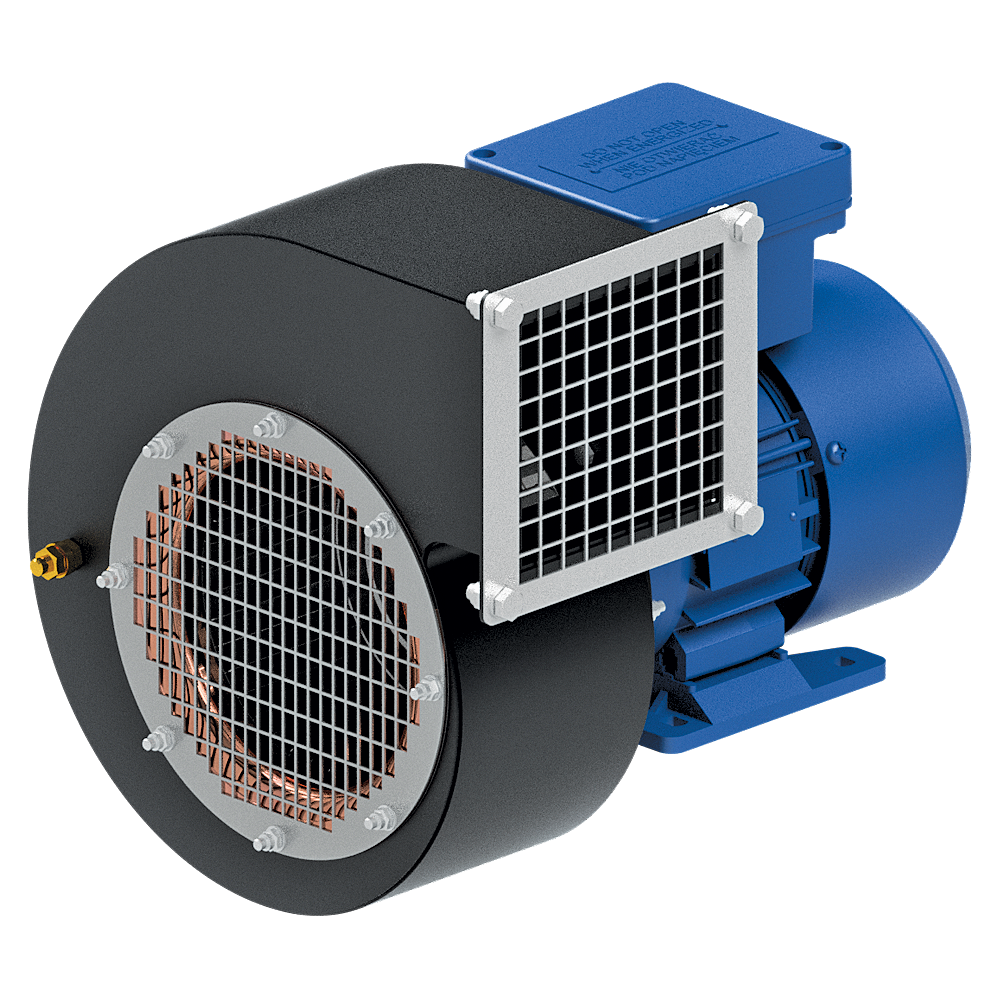

ELF - ATEX Ventilator

ELF

ATEX Ventilator

Ventilatoren erfüllen die Anforderungen der ATEX-Richtlinie 2014/34/EU und sind für den Einsatz in explosionsgefährdeten Bereichen außerhalb von Bergbaugruben und Bergwerken ausgelegt.
Die Möglichkeit, in einer anderen
als der Standardfarbe zu malen
Fragen Sie nach einem Produkt

Anwendung

ELF-Ventilatoren erfüllen die Anforderungen der ATEX-Richtlinie 2014/34 / EU und sind für den Einsatz in explosionsgefährdeten Bereichen außerhalb von Bergbaugruben und Bergwerken ausgelegt. Sie erfüllen die Anforderungen der Gruppe II Kategorie 2G / 3G-Zone 1 und / oder 2. ATEX-Kennzeichnung:

II 2G Ex h IIB T3 Gb

II 2G Ex h IIB T4 Gb auf Anfrage

Konstruktion

  • Niederdruck-Radialventilator mit Direktantrieb
  • Laufrad aus verzinktem Stahlblech mit nach vorne geneigten Schaufeln geschweißt
  • Dynamisch ausgewuchtet nach ISO 1940-1
  • Geschweißtes Stahlblechgehäuse
  • Motorhalterung in den Modellen von 160 bis 450
  • Verzinktes Schutzgitter am Ein- und Auslass
  • Lüfter schwarz lackiert RAL 9005 (Korrosivitätskategorie C3)
  • Maximaltemperatur des Fördermediums beträgt 60°C
  • Motorumgebungstemperatur von -20°C bis 40°C
  • Abbildung: Gehäusestellung LG90

Motor

  • Explosionsgeschützter asynchroner Motor
  • Dreiphasig 230/400V 50Hz und 400/690V 50Hz (je nach Ausführung)
  • Eintourig, 2- oder 4-polig
  • Schutzart IP55
  • Schutzart IP66 (bei frequenzgeregelten Lüftern und bei Einphasenmotoren)
  • Isolationsklasse F
  • Wärmeschutz PTC (je nach Modell und für die Frequenzregelung geeignete Motoren)
  • VFD-Version an Frequenzregelung angepasst

Sonderausführungen

  • Verschiedene Gehäusestellungen LG/RD
  • Lackiert oder beschichtet in allen RAL-Tönen
  • Laufrad, Gehäuse und Anbauteile aus rostfreiem Edelstahl 1.4301
  • Laufrad, Gehäuse und Anbauteile aus säurebeständigem Edelstahl 1.4404
  • Andere Motorspannung und Frequenz
  • Andere Schutzart des Motors
  • Motoren, die mit Sensoren ausgestattet sind
  • Sondermotoren auf Anfrage

Technischer Support

Katalogkarte

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Arbeitseigenschaften

Größe

Typ A B C E F G H
  mm mm mm mm mm mm mm
ELF-2-97T II 2G Ex h IIB T3 Gb 199 200 245.5 99 85 64 64
ELF-2-97T VFD II 2G Ex h IIB T3 Gb 199 200 262.5 99 85 64 64
ELF-4-97T II 2G Ex h IIB T3 Gb 199 200 245.5 99 85 64 64
ELF-4-97T VFD II 2G Ex h IIB T3 Gb 199 200 262.5 99 85 64 64
ELF-2-108T II 2G Ex h IIB T3 Gb 199 200 245.5 99 85 64 64
ELF-2-108T VFD II 2G Ex h IIB T3 Gb 199 200 262.5 99 85 64 64
ELF-4-108T II 2G Ex h IIB T3 Gb 199 200 245.5 99 85 64 64
ELF-4-108T VFD II 2G Ex h IIB T3 Gb 199 200 262.5 99 85 64 64
ELF-2-120T II 2G Ex h IIB T3 Gb 218 222 263 107 95 81 80
ELF-2-120T VFD II 2G Ex h IIB T3 Gb 218 222 280 107 95 81 80
ELF-4-120T II 2G Ex h IIB T3 Gb 218 222 263 107 95 81 80
ELF-4-120 TVFD II 2G Ex h IIB T3 Gb 218 222 280 107 95 81 80
ELF-2-133T II 2G Ex h IIB T3 Gb 238 245 302 115 104 91 87
ELF-2-133T II 2G Ex h IIB T3 Gb 238 245 302 115 104 91 87
ELF-2-133T VFD II 2G Ex h IIB T3 Gb 238 245 293 115 104 91 87
ELF-2-133T VFD II 2G Ex h IIB T3 Gb 238 245 293 115 104 91 87
ELF-4-133T II 2G Ex h IIB T3 Gb 238 245 273 115 104 91 87
ELF-4-133T VFD II 2G Ex h IIB T3 Gb 238 245 291 115 104 91 87
ELF-2-146T II 2G Ex h IIB T3 Gb 258 270 310 123 115 91 87
ELF-2-146T VFD II 2G Ex h IIB T3 Gb 258 270 310 123 115 91 87
ELF-4-146T II 2G Ex h IIB T3 Gb 258 270 268 123 115 91 87
ELF-4-146T VFD II 2G Ex h IIB T3 Gb 258 270 285 123 115 91 87
Typ I J K L S T W
  mm mm mm mm mm mm mm
ELF-2-97T II 2G Ex h IIB T3 Gb 76 76 90 90 81.5 36.5 56
ELF-2-97T VFD II 2G Ex h IIB T3 Gb 76 76 90 90 81.5 36.5 63
ELF-4-97T II 2G Ex h IIB T3 Gb 76 76 90 90 81.5 36.5 56
ELF-4-97T VFD II 2G Ex h IIB T3 Gb 76 76 90 90 81.5 36.5 63
ELF-2-108T II 2G Ex h IIB T3 Gb 76 76 90 90 81.5 36.5 56
ELF-2-108T VFD II 2G Ex h IIB T3 Gb 76 76 90 90 81.5 36.5 63
ELF-4-108T II 2G Ex h IIB T3 Gb 76 76 90 90 81.5 36.5 56
ELF-4-108T VFD II 2G Ex h IIB T3 Gb 76 76 90 90 81.5 36.5 63
ELF-2-120T II 2G Ex h IIB T3 Gb 96 96 114 114 85.5 45 56
ELF-2-120T VFD II 2G Ex h IIB T3 Gb 96 96 114 114 85.5 45 63
ELF-4-120T II 2G Ex h IIB T3 Gb 96 96 114 114 85.5 45 56
ELF-4-120 TVFD II 2G Ex h IIB T3 Gb 96 96 114 114 85.5 45 63
ELF-2-133T II 2G Ex h IIB T3 Gb 115 105 130 120 96.5 50 63
ELF-2-133T II 2G Ex h IIB T3 Gb 115 105 130 120 96.5 50 63
ELF-2-133T VFD II 2G Ex h IIB T3 Gb 115 105 130 120 96.5 50 63
ELF-2-133T VFD II 2G Ex h IIB T3 Gb 115 105 130 120 96.5 50 63
ELF-4-133T II 2G Ex h IIB T3 Gb 115 105 130 120 96.5 50 56
ELF-4-133T VFD II 2G Ex h IIB T3 Gb 115 105 130 120 96.5 50 56
ELF-2-146T II 2G Ex h IIB T3 Gb 115 105 130 120 110 50 71
ELF-2-146T VFD II 2G Ex h IIB T3 Gb 115 105 130 120 110 50 71
ELF-4-146T II 2G Ex h IIB T3 Gb 115 105 130 120 110 50 56
ELF-4-146T VFD II 2G Ex h IIB T3 Gb 115 105 130 120 110 50 63
Typ X Y Z N1 N2 N3 P1
  mm mm mm mm mm mm mm
ELF-2-97T II 2G Ex h IIB T3 Gb 4 8 5.8 10.5 70 72 90
ELF-2-97T VFD II 2G Ex h IIB T3 Gb 4 12 7 12.5 80 81 100
ELF-4-97T II 2G Ex h IIB T3 Gb 4 8 5.8 10.5 70 72 90
ELF-4-97T VFD II 2G Ex h IIB T3 Gb 4 12 7 12.5 80 81 100
ELF-2-108T II 2G Ex h IIB T3 Gb 4 8 5.8 10.5 70 72 90
ELF-2-108T VFD II 2G Ex h IIB T3 Gb 4 12 7 12.5 80 81 100
ELF-4-108T II 2G Ex h IIB T3 Gb 4 8 5.8 10.5 70 72 90
ELF-4-108T VFD II 2G Ex h IIB T3 Gb 4 12 7 12.5 80 81 100
ELF-2-120T II 2G Ex h IIB T3 Gb 4 8 5.8 10.5 70 81 90
ELF-2-120T VFD II 2G Ex h IIB T3 Gb 4 12 7 12.5 80 90 100
ELF-4-120T II 2G Ex h IIB T3 Gb 4 8 5.8 10.5 70 81 90
ELF-4-120 TVFD II 2G Ex h IIB T3 Gb 4 12 7 12.5 80 90 100
ELF-2-133T II 2G Ex h IIB T3 Gb 4 10 7 13 80 90 100
ELF-2-133T II 2G Ex h IIB T3 Gb 4 10 7 13 80 90 100
ELF-2-133T VFD II 2G Ex h IIB T3 Gb 4 12 7 12.5 80 90 100
ELF-2-133T VFD II 2G Ex h IIB T3 Gb 4 12 7 12.5 80 90 100
ELF-4-133T II 2G Ex h IIB T3 Gb 4 8 5.8 10.5 71 86 90
ELF-4-133T VFD II 2G Ex h IIB T3 Gb 4 12 7 12.5 80 95 100
ELF-2-146T II 2G Ex h IIB T3 Gb 4 10 7 13 90 90 112
ELF-2-146T VFD II 2G Ex h IIB T3 Gb 4 12 7 9 90 90 112
ELF-4-146T II 2G Ex h IIB T3 Gb 4 8 5.8 10.5 71 81 90
ELF-4-146T VFD II 2G Ex h IIB T3 Gb 4 12 7 12.5 80 90 100
Typ P2 X1 ØO ØD1 ØD2 ØD3 ØO1
  mm mm mm mm mm mm mm
ELF-2-97T II 2G Ex h IIB T3 Gb 110 8 6 135 125 81.6 4
ELF-2-97T VFD II 2G Ex h IIB T3 Gb 120 8 6 135 125 81.6 4
ELF-4-97T II 2G Ex h IIB T3 Gb 110 8 6 135 125 81.6 4
ELF-4-97T VFD II 2G Ex h IIB T3 Gb 120 8 6 135 125 81.6 4
ELF-2-108T II 2G Ex h IIB T3 Gb 110 8 6 135 125 81.6 4
ELF-2-108T VFD II 2G Ex h IIB T3 Gb 120 8 6 135 125 81.6 4
ELF-4-108T II 2G Ex h IIB T3 Gb 110 8 6 135 125 81.6 4
ELF-4-108T VFD II 2G Ex h IIB T3 Gb 120 8 6 135 125 81.6 4
ELF-2-120T II 2G Ex h IIB T3 Gb 110 8 6 150 138 96 4
ELF-2-120T VFD II 2G Ex h IIB T3 Gb 120 8 6 150 138 96 4
ELF-4-120T II 2G Ex h IIB T3 Gb 110 8 6 150 138 96 4
ELF-4-120 TVFD II 2G Ex h IIB T3 Gb 120 8 6 150 138 96 4
ELF-2-133T II 2G Ex h IIB T3 Gb 124 8 7 160 150 110 4
ELF-2-133T II 2G Ex h IIB T3 Gb 124 8 7 160 150 110 4
ELF-2-133T VFD II 2G Ex h IIB T3 Gb 120 8 7 160 150 110 4
ELF-2-133T VFD II 2G Ex h IIB T3 Gb 120 8 7 160 150 110 4
ELF-4-133T II 2G Ex h IIB T3 Gb 110 8 7 160 150 110 4
ELF-4-133T VFD II 2G Ex h IIB T3 Gb 120 8 7 160 150 110 4
ELF-2-146T II 2G Ex h IIB T3 Gb 142 8 7 175 165 118 4
ELF-2-146T VFD II 2G Ex h IIB T3 Gb 112 8 7 175 165 118 4
ELF-4-146T II 2G Ex h IIB T3 Gb 110 8 7 175 165 118 4
ELF-4-146T VFD II 2G Ex h IIB T3 Gb 100 8 7 175 165 118 4
Typ A B C E F G H
  mm mm mm mm mm mm mm
ELF-2-160T II 2G Ex h IIB T3 Gb 280 422 309.5 132 252 90 107
ELF-2-160T II 2G Ex h IIB T3 Gb 280 422 309.5 132 252 90 107
ELF-2-160T VFD II 2G Ex h IIB T3 Gb 280 422 308.5 132 252 90 107
ELF-2-160T VFD II 2G Ex h IIB T3 Gb 280 422 308.5 132 252 90 107
ELF-4-160T II 2G Ex h IIB T3 Gb 280 414 285.5 132 244 90 107
ELF-4-160T VFD II 2G Ex h IIB T3 Gb 280 414 291.5 132 244 90 107
ELF-2-180T II 2G Ex h IIB T3 Gb 312 452 335 145 261 100 122
ELF-2-180T VFD II 2G Ex h IIB T3 Gb 312 452 355 145 261 100 122
ELF-4-180T II 2G Ex h IIB T3 Gb 312 443 325 145 252 100 122
ELF-4-180T VFD II 2G Ex h IIB T3 Gb 312 443 325 145 252 100 122
ELF-2-200T II 2G Ex h IIB T3 Gb 371 484 385 182 271 119 137
ELF-2-200T VFD II 2G Ex h IIB T3 Gb 371 484 394 182 271 119 137
ELF-4-200T II 2G Ex h IIB T3 Gb 371 474 355 182 261 119 137
ELF-4-200T VFD II 2G Ex h IIB T3 Gb 371 474 374 182 261 119 137
Typ I J K L S T X
  mm mm mm mm mm mm mm
ELF-2-160T II 2G Ex h IIB T3 Gb 110 120 126 140 367 49.5 4
ELF-2-160T II 2G Ex h IIB T3 Gb 110 120 126 140 367 49.5 4
ELF-2-160T VFD II 2G Ex h IIB T3 Gb 110 120 126 140 367 49.5 4
ELF-2-160T VFD II 2G Ex h IIB T3 Gb 110 120 126 140 367 49.5 4
ELF-4-160T II 2G Ex h IIB T3 Gb 110 120 126 140 359 49.5 4
ELF-4-160T VFD II 2G Ex h IIB T3 Gb 110 120 126 140 359 49.5 4
ELF-2-180T II 2G Ex h IIB T3 Gb 130 130 155 155 390 55 4
ELF-2-180T VFD II 2G Ex h IIB T3 Gb 130 130 155 155 390 55 4
ELF-4-180T II 2G Ex h IIB T3 Gb 130 130 155 155 381 55 4
ELF-4-180T VFD II 2G Ex h IIB T3 Gb 130 130 155 155 381 55 4
ELF-2-200T II 2G Ex h IIB T3 Gb 143 160 163 180 414 65 4
ELF-2-200T VFD II 2G Ex h IIB T3 Gb 143 160 163 180 414 65 4
ELF-4-200T II 2G Ex h IIB T3 Gb 143 160 163 180 404 65 4
ELF-4-200T VFD II 2G Ex h IIB T3 Gb 143 160 163 180 404 65 4
Typ N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm
ELF-2-160T II 2G Ex h IIB T3 Gb 12.5 117.5 130 200 232 251 8
ELF-2-160T II 2G Ex h IIB T3 Gb 12.5 117.5 130 200 232 251 8
ELF-2-160T VFD II 2G Ex h IIB T3 Gb 12.5 117.5 130 200 232 251 8
ELF-2-160T VFD II 2G Ex h IIB T3 Gb 12.5 117.5 130 200 232 251 8
ELF-4-160T II 2G Ex h IIB T3 Gb 12.5 117.5 130 200 232 251 8
ELF-4-160T VFD II 2G Ex h IIB T3 Gb 12.5 117.5 130 200 232 251 8
ELF-2-180T II 2G Ex h IIB T3 Gb 12.5 117.5 130 220 232 251 8
ELF-2-180T VFD II 2G Ex h IIB T3 Gb 12.5 117.5 130 220 232 251 8
ELF-4-180T II 2G Ex h IIB T3 Gb 12.5 117.5 130 210 232 251 8
ELF-4-180T VFD II 2G Ex h IIB T3 Gb 12.5 117.5 130 210 232 251 8
ELF-2-200T II 2G Ex h IIB T3 Gb 12.5 157.5 170 268 242 261 8
ELF-2-200T VFD II 2G Ex h IIB T3 Gb 12.5 157.5 170 268 242 261 8
ELF-4-200T II 2G Ex h IIB T3 Gb 12.5 157.5 170 268 242 261 8
ELF-4-200T VFD II 2G Ex h IIB T3 Gb 12.5 157.5 170 268 242 261 8
Typ X2 ØO ØD1 ØD2 ØD3 ØO1 ØO2
  mm mm mm mm mm mm mm
ELF-2-160T II 2G Ex h IIB T3 Gb 4 7 194 180 130 5 9
ELF-2-160T II 2G Ex h IIB T3 Gb 4 7 194 180 130 5 9
ELF-2-160T VFD II 2G Ex h IIB T3 Gb 4 7 194 180 130 5 9
ELF-2-160T VFD II 2G Ex h IIB T3 Gb 4 7 194 180 130 5 9
ELF-4-160T II 2G Ex h IIB T3 Gb 4 7 194 180 130 5 9
ELF-4-160T VFD II 2G Ex h IIB T3 Gb 4 7 194 180 130 5 9
ELF-2-180T II 2G Ex h IIB T3 Gb 4 7 220 205 150 5 9
ELF-2-180T VFD II 2G Ex h IIB T3 Gb 4 7 220 205 150 5 9
ELF-4-180T II 2G Ex h IIB T3 Gb 4 7 220 205 150 5 9
ELF-4-180T VFD II 2G Ex h IIB T3 Gb 4 7 220 205 150 5 9
ELF-2-200T II 2G Ex h IIB T3 Gb 4 7 235 222 170 5 9
ELF-2-200T VFD II 2G Ex h IIB T3 Gb 4 7 235 222 170 5 9
ELF-4-200T II 2G Ex h IIB T3 Gb 4 7 235 222 170 5 9
ELF-4-200T VFD II 2G Ex h IIB T3 Gb 4 7 235 222 170 5 9
Typ A B C E F G H I
  mm mm mm mm mm mm mm mm
ELF-2-225T II 2G Ex h IIB T3 Gb 372.5 513 491.5 183 300 148 136 173
ELF-2-225T VFD II 2G Ex h IIB T3 Gb 372.5 513 491.5 183 300 148 136 173
ELF-4-225T II 2G Ex h IIB T3 Gb 372.5 513 491.5 183 300 148 136 173
ELF-4-225T VFD II 2G Ex h IIB T3 Gb 372.5 513 491.5 183 300 148 136 173
ELF-2-250T II 2G Ex h IIB T3 Gb 416.5 618 573.5 204 370 168 190 210
ELF-2-250T VFD II 2G Ex h IIB T3 Gb 416.5 618 573.5 204 370 168 190 210
ELF-4-250T II 2G Ex h IIB T3 Gb 416.5 618 573.5 204 370 168 190 210
ELF-4-250T VFD II 2G Ex h IIB T3 Gb 416.5 618 573.5 204 370 168 190 210
ELF-2-280T II 2G Ex h IIB T3 Gb 425 625 543.5 207 370 135 174 177
ELF-2-280T VFD II 2G Ex h IIB T3 Gb 425 625 543.5 207 370 135 174 177
ELF-4-280T II 2G Ex h IIB T3 Gb 425 625 543.5 207 370 135 174 177
ELF-4-280T VFD II 2G Ex h IIB T3 Gb 425 625 543.5 207 370 135 174 177
Typ J K L S T X N1
  mm mm mm mm mm mm mm
ELF-2-225T II 2G Ex h IIB T3 Gb 161 193 181 443 80.5 4 20
ELF-2-225T VFD II 2G Ex h IIB T3 Gb 161 193 181 443 80.5 4 20
ELF-4-225T II 2G Ex h IIB T3 Gb 161 193 181 443 80.5 4 20
ELF-4-225T VFD II 2G Ex h IIB T3 Gb 161 193 181 443 80.5 4 20
ELF-2-250T II 2G Ex h IIB T3 Gb 230 235 255 521 90 4 20
ELF-2-250T VFD II 2G Ex h IIB T3 Gb 230 235 255 521 90 4 20
ELF-4-250T II 2G Ex h IIB T3 Gb 230 235 255 521 90 4 20
ELF-4-250T VFD II 2G Ex h IIB T3 Gb 230 235 255 521 90 4 20
ELF-2-280T II 2G Ex h IIB T3 Gb 214 202 239 536 73.5 4 20
ELF-2-280T VFD II 2G Ex h IIB T3 Gb 214 202 239 536 73.5 4 20
ELF-4-280T II 2G Ex h IIB T3 Gb 214 202 239 536 73.5 4 20
ELF-4-280T VFD II 2G Ex h IIB T3 Gb 214 202 239 536 73.5 4 20
Typ N2 N3 N4 N5 P1 P2 X1
  mm mm mm mm mm mm mm
ELF-2-225T II 2G Ex h IIB T3 Gb 175 330 330.5 350 245 265 8
ELF-2-225T VFD II 2G Ex h IIB T3 Gb 175 330 330.5 350 245 265 8
ELF-4-225T II 2G Ex h IIB T3 Gb 175 330 330.5 350 245 265 8
ELF-4-225T VFD II 2G Ex h IIB T3 Gb 175 330 330.5 350 245 265 8
ELF-2-250T II 2G Ex h IIB T3 Gb 190 360 380.5 380 326 350 8
ELF-2-250T VFD II 2G Ex h IIB T3 Gb 190 360 380.5 380 326 350 8
ELF-4-250T II 2G Ex h IIB T3 Gb 190 360 380.5 380 326 350 8
ELF-4-250T VFD II 2G Ex h IIB T3 Gb 190 360 380.5 380 326 350 8
ELF-2-280T II 2G Ex h IIB T3 Gb 190 360 364 380 326 350 8
ELF-2-280T VFD II 2G Ex h IIB T3 Gb 190 360 364 380 326 350 8
ELF-4-280T II 2G Ex h IIB T3 Gb 190 360 364 380 326 350 8
ELF-4-280T VFD II 2G Ex h IIB T3 Gb 190 360 364 380 326 350 8
Typ X2 ØO ØD1 ØD2 ØD3 ØO1 ØO2
  mm mm mm mm mm mm mm
ELF-2-225T II 2G Ex h IIB T3 Gb 6 11 265 250 170 6 9
ELF-2-225T VFD II 2G Ex h IIB T3 Gb 6 11 265 250 170 6 9
ELF-4-225T II 2G Ex h IIB T3 Gb 6 11 265 250 170 6 9
ELF-4-225T VFD II 2G Ex h IIB T3 Gb 6 11 265 250 170 6 9
ELF-2-250T II 2G Ex h IIB T3 Gb 6 11 310 290 203 6 11
ELF-2-250T VFD II 2G Ex h IIB T3 Gb 6 11 310 290 203 6 11
ELF-4-250T II 2G Ex h IIB T3 Gb 6 11 310 290 203 6 11
ELF-4-250T VFD II 2G Ex h IIB T3 Gb 6 11 310 290 203 6 11
ELF-2-280T II 2G Ex h IIB T3 Gb 6 11 330 310 221 6 11
ELF-2-280T VFD II 2G Ex h IIB T3 Gb 6 11 330 310 221 6 11
ELF-4-280T II 2G Ex h IIB T3 Gb 6 11 330 310 221 6 11
ELF-4-280T VFD II 2G Ex h IIB T3 Gb 6 11 330 310 221 6 11
Typ A B C E F G H I
  mm mm mm mm mm mm mm mm
ELF-4-315T II 2G Ex h IIB T3 Gb 498 740 573 217.5 400 230 240 271
ELF-4-315T VFD II 2G Ex h IIB T3 Gb 498 740 573 217.5 400 230 240 271
ELF-6-315T II 2G Ex h IIB T3 Gb 498 740 573 217.5 400 230 240 271
ELF-6-315T VFD II 2G Ex h IIB T3 Gb 498 740 573 217.5 400 230 240 271
ELF-4-355T II 2G Ex h IIB T3 Gb 579.5 761 572.5 260.5 410 217 215 256
ELF-4-355T VFD II 2G Ex h IIB T3 Gb 579.5 761 572.5 260.5 410 217 215 256
ELF-6-355T II 2G Ex h IIB T3 Gb 579.5 761 572.5 260.5 410 217 215 256
ELF-6-355T VFD II 2G Ex h IIB T3 Gb 579.5 761 572.5 260.5 410 217 215 256
ELF-4-400T II 2G Ex h IIB T3 Gb 658.5 948 739.5 284.5 520 289 274 332
ELF-4-400T VFD II 2G Ex h IIB T3 Gb 658.5 948 739.5 284.5 520 289 274 332
ELF-6-400T II 2G Ex h IIB T3 Gb 658.5 948 739.5 284.5 520 289 274 332
ELF-6-400T VFD II 2G Ex h IIB T3 Gb 658.5 948 739.5 284.5 520 289 274 332
Typ J K L S T X N1
  mm mm mm mm mm mm mm
ELF-4-315T II 2G Ex h IIB T3 Gb 281 305 315 617 121.5 8 25
ELF-4-315T VFD II 2G Ex h IIB T3 Gb 281 305 315 617 121.5 8 25
ELF-6-315T II 2G Ex h IIB T3 Gb 281 305 315 617 121.5 8 25
ELF-6-315T VFD II 2G Ex h IIB T3 Gb 281 305 315 617 121.5 8 25
ELF-4-355T II 2G Ex h IIB T3 Gb 252 286 282 650.5 115.5 8 25
ELF-4-355T VFD II 2G Ex h IIB T3 Gb 252 286 282 650.5 115.5 8 25
ELF-6-355T II 2G Ex h IIB T3 Gb 252 286 282 650.5 115.5 8 25
ELF-6-355T VFD II 2G Ex h IIB T3 Gb 252 286 282 650.5 115.5 8 25
ELF-4-400T II 2G Ex h IIB T3 Gb 315 366 349 808 153.5 8 30
ELF-4-400T VFD II 2G Ex h IIB T3 Gb 315 366 349 808 153.5 8 30
ELF-6-400T II 2G Ex h IIB T3 Gb 315 366 349 808 153.5 8 30
ELF-6-400T VFD II 2G Ex h IIB T3 Gb 315 366 349 808 153.5 8 30
Typ N2 N3 N4 N5 P1 P2 X1
  mm mm mm mm mm mm mm
ELF-4-315T II 2G Ex h IIB T3 Gb 210 395 402.5 420 253 280 8
ELF-4-315T VFD II 2G Ex h IIB T3 Gb 210 395 402.5 420 253 280 8
ELF-6-315T II 2G Ex h IIB T3 Gb 210 395 402.5 420 253 280 8
ELF-6-315T VFD II 2G Ex h IIB T3 Gb 210 395 402.5 420 253 280 8
ELF-4-355T II 2G Ex h IIB T3 Gb 210 395 397 420 273 300 8
ELF-4-355T VFD II 2G Ex h IIB T3 Gb 210 395 397 420 273 300 8
ELF-6-355T II 2G Ex h IIB T3 Gb 210 395 397 420 273 300 8
ELF-6-355T VFD II 2G Ex h IIB T3 Gb 210 395 397 420 273 300 8
ELF-4-400T II 2G Ex h IIB T3 Gb 260 490 503 540 394 430 8
ELF-4-400T VFD II 2G Ex h IIB T3 Gb 260 490 503 540 394 430 8
ELF-6-400T II 2G Ex h IIB T3 Gb 260 490 503 540 394 430 8
ELF-6-400T VFD II 2G Ex h IIB T3 Gb 260 490 503 540 394 430 8
Typ X2 ØO ØD1 ØD2 ØD3 ØO1 ØO2
  mm mm mm mm mm mm mm
ELF-4-315T II 2G Ex h IIB T3 Gb 6 11 382 360 254 6 12
ELF-4-315T VFD II 2G Ex h IIB T3 Gb 6 11 382 360 254 6 12
ELF-6-315T II 2G Ex h IIB T3 Gb 6 11 382 360 254 6 12
ELF-6-315T VFD II 2G Ex h IIB T3 Gb 6 11 382 360 254 6 12
ELF-4-355T II 2G Ex h IIB T3 Gb 6 11 410 390 287 6 12
ELF-4-355T VFD II 2G Ex h IIB T3 Gb 6 11 410 390 287 6 12
ELF-6-355T II 2G Ex h IIB T3 Gb 6 11 410 390 287 6 12
ELF-6-355T VFD II 2G Ex h IIB T3 Gb 6 11 410 390 287 6 12
ELF-4-400T II 2G Ex h IIB T3 Gb 6 11 470 440 325 8 14
ELF-4-400T VFD II 2G Ex h IIB T3 Gb 6 11 470 440 325 8 14
ELF-6-400T II 2G Ex h IIB T3 Gb 6 11 470 440 325 8 14
ELF-6-400T VFD II 2G Ex h IIB T3 Gb 6 11 470 440 325 8 14
Typ A B C E F G H I J K
  mm mm mm mm mm mm mm mm mm mm
ELF-6-450T II 2G Ex h IIB T3 Gb 712.5 971 769 314.5 520 319 297 270 260 409
ELF-6-450T VFD II 2G Ex h IIB T3 Gb 712.5 971 769 314.5 520 319 297 270 260 409
Typ L S T X I1 J1 N1
  mm mm mm mm mm mm mm
ELF-6-450T II 2G Ex h IIB T3 Gb 385 819.5 168.5 12 369 345 20
ELF-6-450T VFD II 2G Ex h IIB T3 Gb 385 819.5 168.5 12 369 345 20
Typ N2 N3 N4 N5 P1 P2 X1
  mm mm mm mm mm mm mm
ELF-6-450T II 2G Ex h IIB T3 Gb 270 548 518 568 334 370 8
ELF-6-450T VFD II 2G Ex h IIB T3 Gb 270 548 518 568 334 370 8
Typ X2 ØO ØD1 ØD2 ØD3 ØO1 ØO2
  mm mm mm mm mm mm mm
ELF-6-450T II 2G Ex h IIB T3 Gb 6 11 530 500 365 8 14
ELF-6-450T VFD II 2G Ex h IIB T3 Gb 6 11 530 500 365 8 14

Zusätzliche Ausstattung


Venture Industries Group

Unternehmen

Produkte

Materialien
